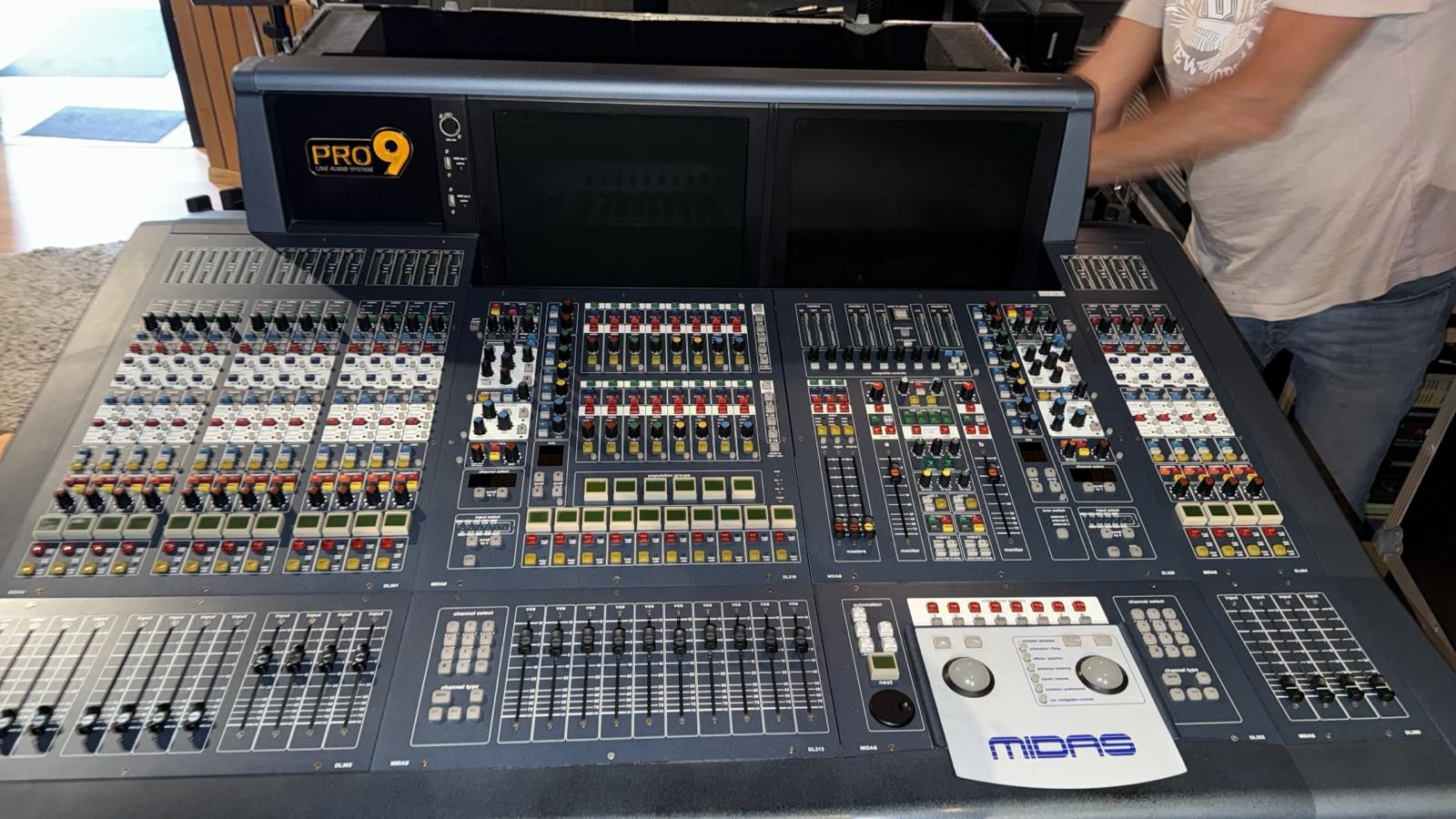

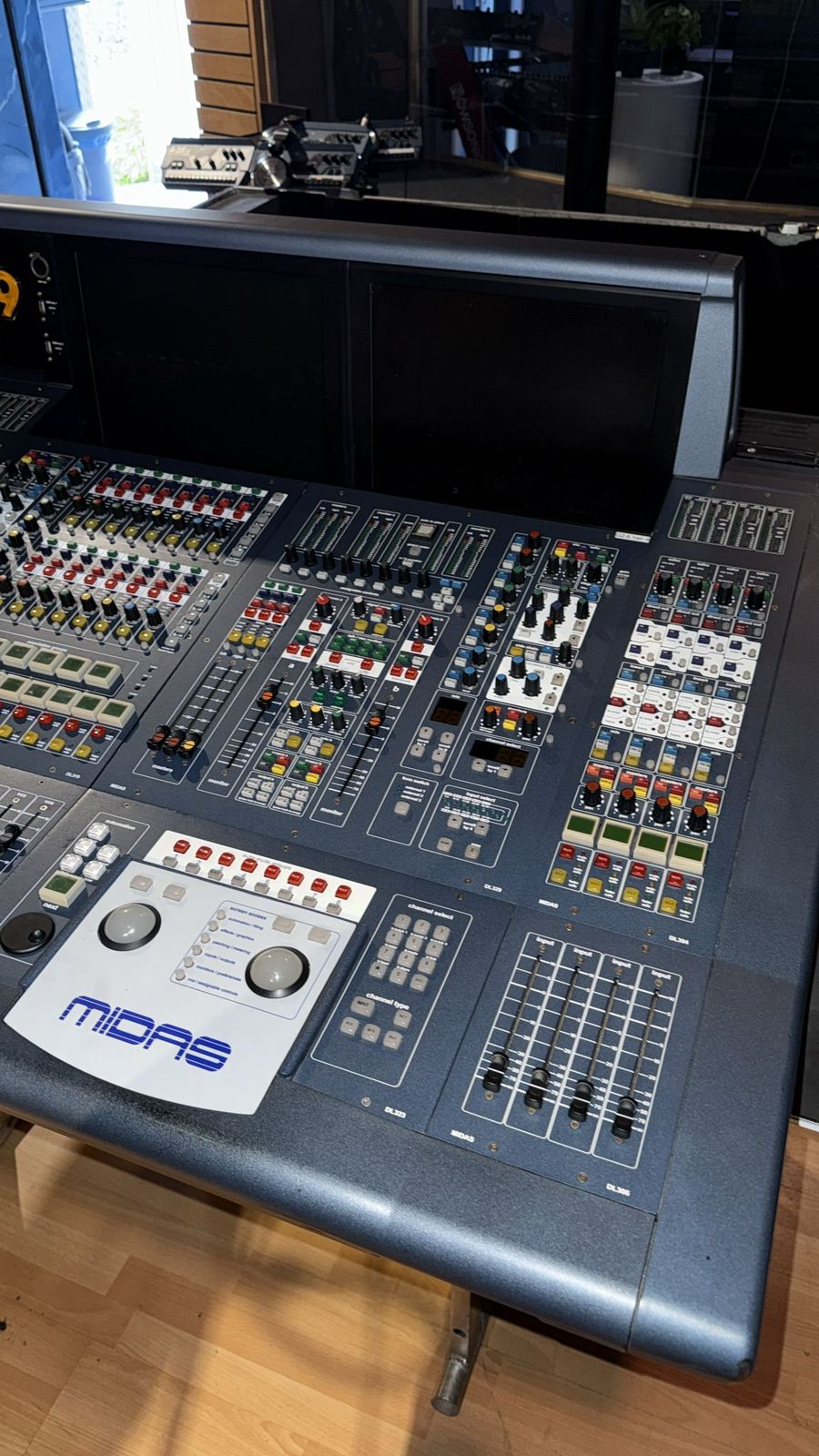

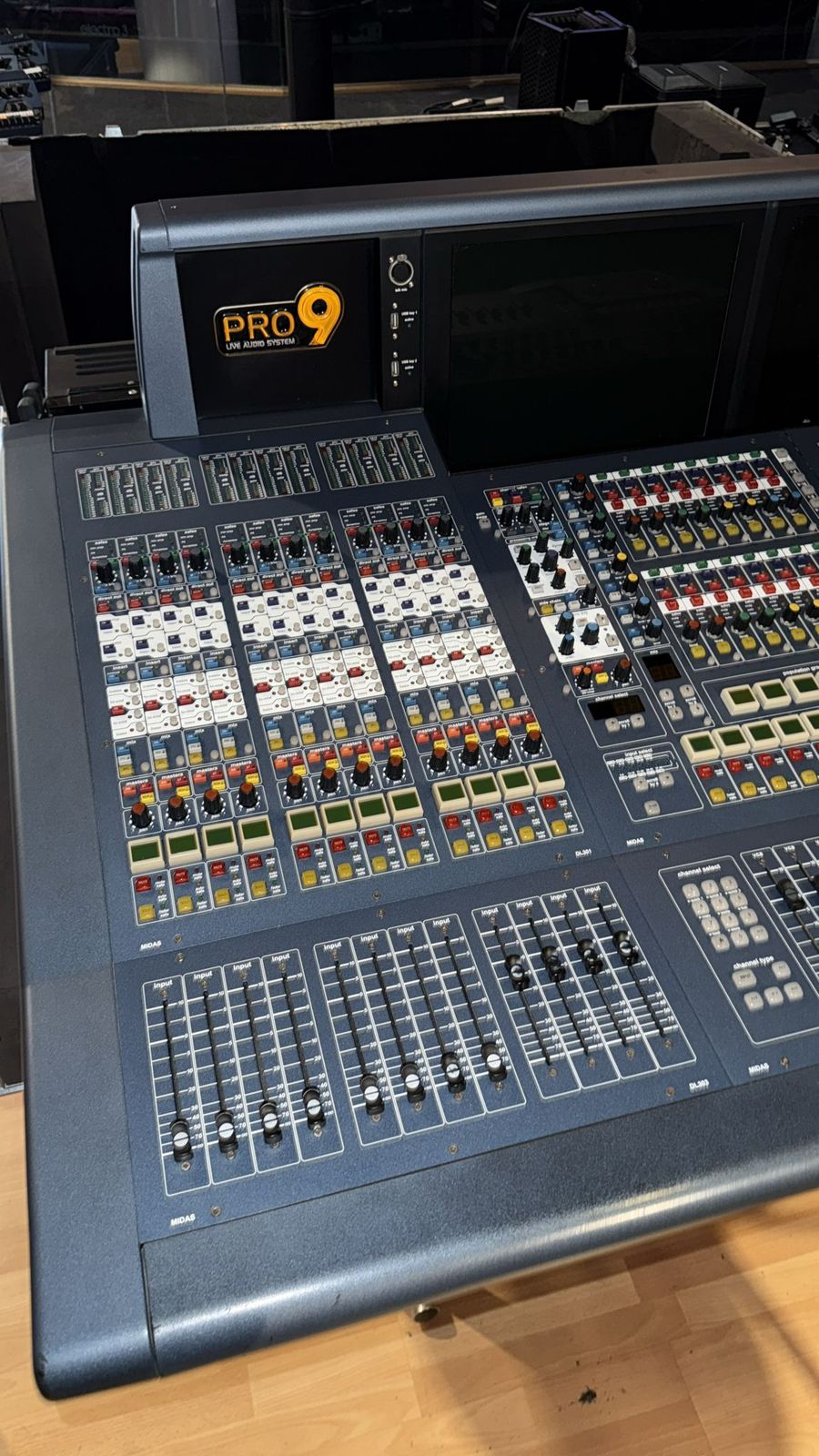

Console Midas Pro 9

Live Digital Console Control Centre and Audio System Engine with 88 Input-Channels, 35 Mix Buses and 96 kHz Sample Rate
Product Features
Live performance digital console control centre with up to 88 simultaneous input channels

Includes DL371PRO9 Audio System Engine with 28.8 Gigaflops digital signal processing performance

Fitted with 6 DL371A DSP cards as standard

Additional DL371A DSP card allows upgrade to N+1 redundant operation

35 time-aligned and phase-coherent mix buses

40 bit floating point processing with 96 kHz sample rate

HyperMAC and AES50 networking allows up to 288 inputs and 294 outputs @ 96 kHz Sample Rate

HyperMAC router with 192 bidirectional channels over copper and optical fibre

Provides dual redundant snake connection to DL371PRO9 Audio System Engine

Snake connections up to 500 m with optical fibre or 100 m with CAT5/5e cable

10 VCA (variable control association) and 8 POPulation groups

Up to 36 assignable 1/3 octave Klark Teknik DN370 graphic equalisers

Up to 8 multi-channel digital signal processing effects engines

Up to 8 multi-channel digital signal processing effects engines

29 Midas PRO motorised 100 mm faders

2 daylight viewable 15″ full colour TFT display screens

Fully interpolated touch sensitive controls

Optional wireless remote control with Midas MIXTENDER App for iPad
